How to use straightener for novice

New and old customers use straight wire machine | steel wire straightening machine Xinde shunmai straight wire machine only needs to use once straightening and cutting machine users, basically can outline the operation principle of steel wire straightening and cutting machine, for new customers, or to use more ability to get understanding, straight wire machine factory for you to summarize the operation principle of steel wire straightening machine easy to understand.

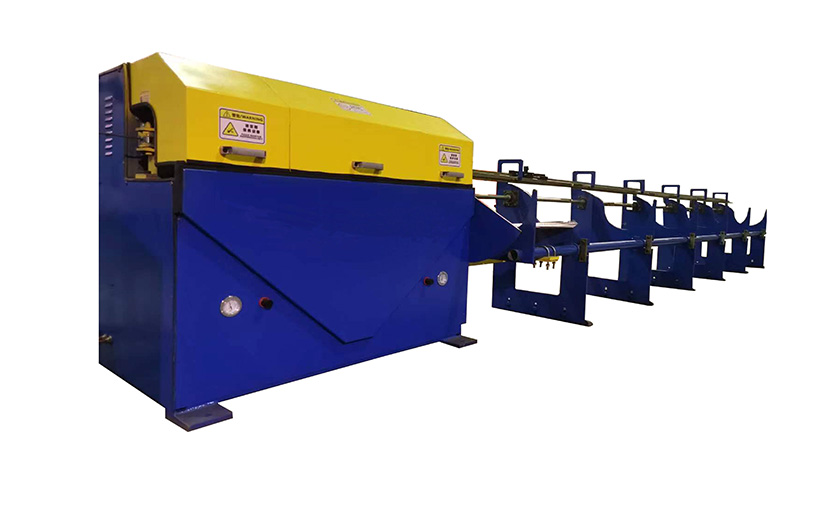

The operation principle of steel wire straightening machine: the motor increases speed through belt transmission, which makes the straightening cylinder of the straight wire machine rotate at a high speed. The steel bar passing through the straightening cylinder is straightened, and the rust on the surface of the steel bar is removed by the straightening die; the motor drives two transmission rollers through another pair of deceleration belts and gear reducer on the one hand.

On the other hand, it drives the crank wheel to make the hammer head move up and down. When the steel bar is adjusted to the predetermined length, the hammer hammers the upper tool holder to cut off the steel bar. When the cut steel bar falls into the receiving frame, the cutter head will return to its original position due to the spring action to complete a cycle. The straight wire machine of the factory has the characteristics of reasonable structure, easy operation, safe and reliable. It is suitable for chicken cage, rabbit cage, construction mesh, steel mesh, various welding wires, Shule plate inserting wire cutting and special-shaped mesh wire straightening and cutting.

The structure of the machine is that the high-speed rotor rotates to adjust the angle of the straight wire die to achieve the effect of straightening, and then thread the wire forward through the threading wheel. After reaching the requested size, the wire touches the positioning key and pushes the runway forward for 5mm. The upper punch presses the vertical wire cutter and cuts it immediately. The wire passes through the pressure plate on the vertical wire cutter and presses the opening bearing. The wire automatically falls to the wire holder. If the length needs to be changed, move the positioning key.
