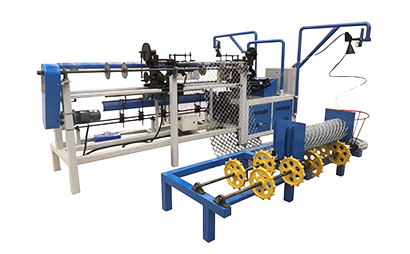

Full automatic chain link fence machine

Description

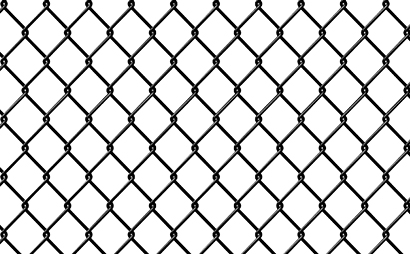

A.Chain link machine for manufacturing chain link fence in different size. The wire is taken in from the payoff stand and passed through the dies where the diamond size takes place. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitch process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.

B.The machine is controlled by PLC automatic control system with touch screen, so only one person is needed to operate it.

C.The chain link fence is automatically wound to from rolls when the desired length is reached.

D.One side or both sides of the end of net hole is twisted or with burr in edge.

E.The automatic winder rolls up the chain link fence automatically.

Parameter

1.Width scope of weaving:2-6M.

2.Mesh scope of weaving 30-100mm(Our machine can provide 2 different types of knife molds)

3.Wire scope of weaving :1.6-4mm.

4.The output per hour:30-150㎡.

5.The machine is controlled by PLC automatic controller.

6.Power consumption: 9KW.

7.Weight of chain link fence machine: 4200kg.

8.Overall size:  machine size depends on the width of the mesh.

9.Electric System:

⑴ Taiwan DELTA PLC

⑵ Servo motor

⑶ Low-voltage electrical from Germany Schneider

⑷ Electric & Machinery from Taiwan DELTA

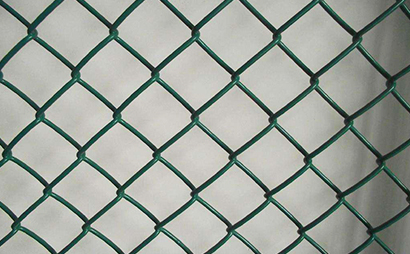

10.The machine is suitable for all kinds of wire, Low-carbon steel wire, Electro-galvanized wire, Hot-dipped galvanized wire, PVC coated wire, etc.

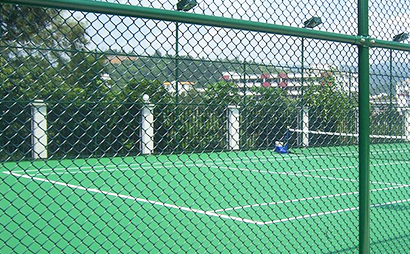

11.Chain link fence is extensively used as safety fence for playground, garden, airport, residence, super highway, etc.
