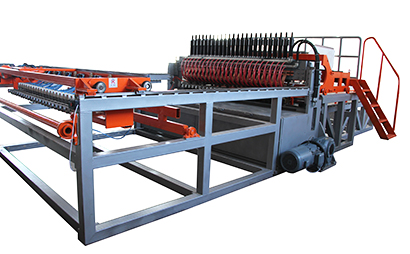

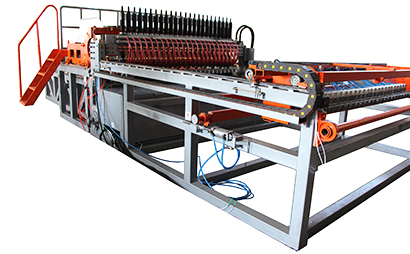

Reinforcing Mesh Welding Machine

Reinforcing Mesh Welding Machine	Reinforcing Mesh Welding Machine
Reinforcing Mesh Welding Machine	Reinforcing Mesh Welding Machine

Description

Reinforcing mesh welding machine adopts synchronous control technique, welding time and separate welding are controlled by automatic control system &HMI, which can operate more intelligent. The welding transformers work separately, which can reduce the requirements for the power supply system.

1.The working parameters of the mesh are input and displayed into the automatic system with visual touch screen. This operation is very simple.

2.Cross wire feeding hopper device adopts stepper motor driving disc device to feed wire automatically, the hopper with large storage capacity of wire, the machine will stop working automatically when there is no cross wire in hopper.

3.Line wire sending device adopts servo motor with reducer driving pneumatic clamping sending wire device to send line wire to welding position, machine welding automatically,

while it welding, labor can prepare the line wires for the next mesh panel in advance, save

more time and increase the production efficiency.

4.Pulling mesh device adopts servo motor with reducer driving pneumatic clamping pulling mesh device, makes the mesh size more accurate. Automatic continuous reciprocating pulling mesh to achieve extra longer mesh production.

5.The machine equipped with water cooling welding electrode, new epoxy resin pouring type water cooling mesh welding special transformer, compared with traditional transformer, it has more small size, high security and reliability.
